variable frequency drive energy saving water pump with automatic pressure control Optionals: Application:Brief Introduct

Send your inquiry

DESCRIPTION

Basic Info.
Model NO. VFWI-16M/1-18
Power Power
Start Up Electric Pump
Type Water Pump
Application Water Pump
Industry Mechanical Pump
Media Water
Performance Automatic Pump
Theory Electromagnetic Pump
Frequency 20-50Hz/60Hz
Transport Package Packed by Standard Export Carton
Trademark Wasinex
Origin Zhejiang, China
Production Capacity 500 Pieces Per Day
Product Description

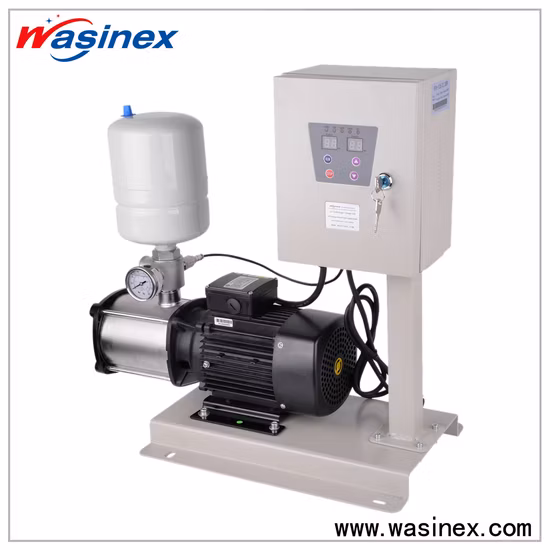

Vfwi-16m Series Wasinex Single Phase in & Single Phase out Variable Frequency Drive Energy Saving Water Pump


variable frequency drive energy saving water pump with automatic pressure control

Optionals:

ModelPowerRated FlowRated Head(m)Input VoltageOutput FrequencyMobile Phone App Control FunctionPressure SensorPrice(USD
VFWI-16M/1-180.25KW1.0181X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)224-256
VFWI-16M/1-250.25KW1.0251X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)224-256
VFWI-16M/1-330.37KW1.0331X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)240-272
VFWI-16M/1-380.37KW1.0381X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)240-272
VFWI-16M/1-460.37KW1.0461X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/2-180.25KW2.0181X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)224-256
VFWI-16M/2-240.37KW2.0241X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)240-272
VFWI-16M/2-320.55KW2.0321X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/2-400.55KW2.0401X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-15M/2-470.75KW2.0471X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/3-150.25KW3.0151X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/3-210.37KW3.0211X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/3-280.55KW3.0281X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/3-340.55KW3.0341X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/3-380.75KW3.0381X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/4-150.37KW4.0151X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/4-250.55KW4.0251X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/4-300.75KW4.0301X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/4-401.0KW4.0401X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/5-130.37KW5.0131X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/5-220.55KW5.0221X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/5-270.75KW5.0271X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288
VFWI-16M/5-351.0KW5.0351X220V20-50/60HzExtra Charge 20mA,+24V,(10bar,16bar,25bar)256-288


Application:Brief Introduction:
VFWJ-16S series Inverter Booster System (variable speed drive constant pressure water supply system) adopts the latest VVVF(Variable Voltage and Variable Frequency)AC Frequency conversion speed regulation technology combined with pressure sensing technology ,through the feedback of on-time pressure value compared with the setting pressure, it can automatically adjust the motor speed, variable frequency drive energy saving water pump with automatic pressure control and keep the outlet pressure constant.

1.Pressurized water supply system for tap water
2.Househould and villa water supply system
3.Medium and small sized swimming pool water supply system
4.Barber shop water supply system
5.Bathing center water supply system
6.Factory dormitory water supply system
7.Industrial water system
8.Hot and cold water circulating water supply system
9.Cooling water system

Features:

  1. Energy-efficient .Compared with the traditional way of water supply system, our inverter booster system save energy up to 30%-60%.
  2. Compact and Reliable
  3. Easy operation and setting: just press the key to set the required pressure easy and convenience.
  4. Soft-start and soft-stop, no water hammer
  5. Easy installation
  6. All the flow channel made of stainless steel 304 or 316L, no second pollution to water.
  7. No power protection, dry-running protection, over-loading protection and over-heat protection.

Operation Condition:
Ambient temperature: not more than 50ºC
Liquid temperature:

standard model: 0ºC to 50ºC
hot water model: 0ºC to 90ºC
