DESCRIPTION

Basic Info.

Model NO.	B603B2S
Driving Type	Motor
Impeller Number	Multistage Pump
Working Pressure	Low Pressure Pump
Influent Type of Impeller	Double-Suction Pump
Position of Pump Shaft	Horizontal or Veritcal Pump
Pump Casing Combined	Horizontal Split or Veritcaljoint Surface Pump
Mounting Height	Since Irrigation or Suction Centrifugal Pump
Impeller	Closed
Usage	Pumps
Dry Protection	Stop Automatically When No Water Consuming
Function	Built-in Pid Control Can Realize Sleep Down
Vol.Grade	220V or 380V
Power Range	0.75~350kw
Max.Pump System	Max.Can Be 6 Pumps Together Communication
Features	Power off,Then Power on,Can Start Automatically
Control Method	Constant Pressure Control
Application	Villa, High-Low Residential
Transport Package	in CTN or Ply Wooden Case
Specification	1PH 220V, 3PH 220V/380V
Trademark	BEDFORD
Origin	GUANGZHOU, CHINA
Production Capacity	5000PCS/Year

Packaging & Delivery

Package Size 120.00cm * 100.00cm * 130.00cm Package Gross Weight 120.000kg

Product Description

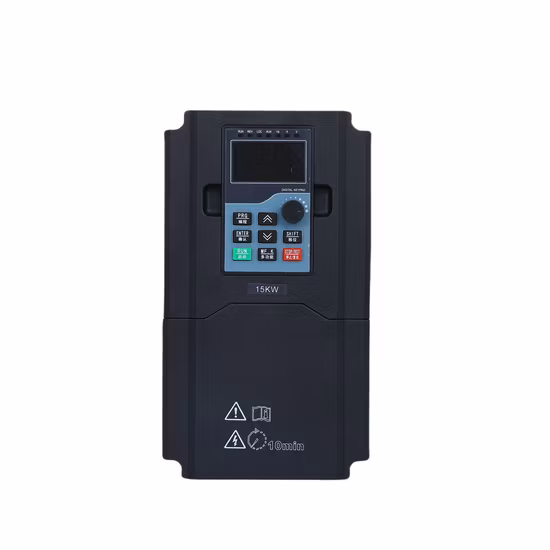

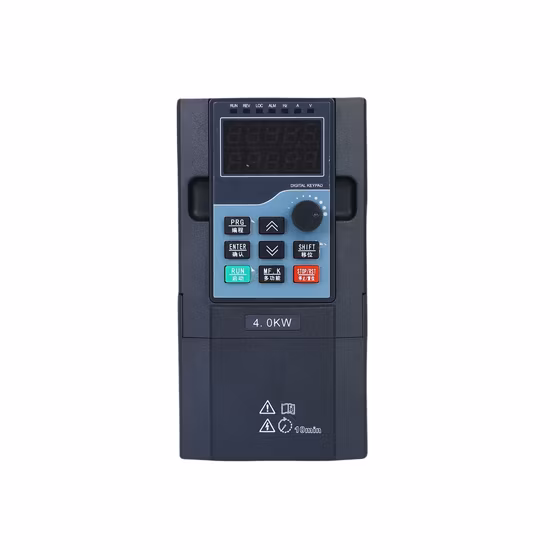

Intelligent Constant Pressure VFD Multi-Booster Pump System
Intelligent Constant Pressure Water Supply Pump Equipment

Characteristics:
. Smooth, quiet operation
. Choice of pressure settings
. Built-in pumping system protection
with a constant pressure system, you don't have to schedule your day around your water usage. BEDFORD constant pressure controllers vastly improve your home water system. Using variable speed technology, BEDFORD continuously monitor water demand and adjust the speed of your pump to provide the water you need without pressure fluctuations. Available in a wide variety of ratings, these systems also provide:
. Horizontal Single Pump Constant Pressure Variable Water Supply Equipment
. Vertical Single Pump Constant Pressure Variable Water Supply Equipment
. Double or Multi-pumps Constant Pressure Variable Water Supply Equipment
. Additive Pipe Pressure(No-negative Pressure Water Supply)Complete Water Supply Devices
Power range:
Single phase 220V input: 0.37kw~2.2kw
Three phase 220V input : 3.7kw~55kw
Three phase 380V input : 0.75kw~350kw

Four sensors are selectable:	. Pressure transmitter 4~20mA . Transmissible pressure gauge . Electric contact pressure gauge . Pressure switch
Applications:	Industiral and agricultural production, high and low-rise residences, villas, schools, hospitals, large community-based, air-source heat pump hot and cold water systems, water treatment, water supply systems, such as energy-efficient building on various occasions.

Why Always BEDFORD???1.Professional-Twenty-Seven years Professional Power Inverter Export, twenty years manufacturer Experience2.Hi-tech--Advanced R&D Team3.Certifications--Applied with CE,Rohs, ISO 9001, ISO14001,ISO450014.Good quality--BEDFORD Brand, Patent products.
